Quick Details

  • Condition: New
  • Type: Vertical Conveyor
  • Material: Carbon steel
  • Material Feature: Heat Resistant
  • Structure: Conveyor System
  • Load Capacity: 3.0t/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Tianlong
  • Model Number: SZC550
  • Voltage: 220V/380V, 220V/380V
  • Power(W): 2*1500
  • Dimension(L*W*H): As you need
  • Certification: ISO, CE and so on
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Stainless Steel Vibration Vertical Conveyor for Sale
  • Keyword: Vibration Vertical Conveyor
  • Brand: Tianlong
  • Weight: 1190KG
  • Conveying Groove Diameter: 550mm
  • Conveying Width: 152mm
  • Conveying Height: ≤3.5m
  • Vibration Frequency: 960/min
  • Double-amplitude: 6-8mm

Packaging & Delivery

Packaging Details Vibration Vertical Conveyor will be packed by wooden cases or according to customers' requirements.
Delivery Time Generally within 10 working days after we get advance payments

Stainless Steel Vibration Vertical Conveyor for Sale



Product Description

Vertical vibration elevator is used to lift all powdery and massive and short fibers of solid materials. It is widely used in chemical, rubber, plastics, medicine, light industry, food, metallurgy, building materials, machinery, mining, food and other industries. In addition to lifting the material from the bottom up, it can also complete the drying and cooling tasks for the materials It was divided into structures as sletling type and endesed type. In accordance with the requirements of different processes we can also design the elevate with the effect of partide grading and screening and devise the equipment which is suitable for flammable and explosive materials. This machine covers a small area, enjoys simple and reasonable structure, easy maintenance, low power consumption, no noise. Closed structure hoist prevent the dust and harmful gasses from polluting the environment of the workplace effectively.

Features

1) The product has the advantage of small occupation area. It is easy to set up process.
2) Materials can be conveyed upwards, also can be conveyed downwords.
3) Low noise, simple structure, easy installation and maintenance.
4) Simple and reasonable structure, small energy consumption, saving energy, small trough abrasion.

Working Feature

Driving device vibration motor of SZC series vertical vibrating conveyor (elevator) is installed in the lower part of conveying tower. The two vibrating motors are symmetric and cross installation. Conveying tower is composed of pipe body and screw conveying trough which is welded around the pipe body. Conveying tower is located on the vibration damping device. The vibration damping device is composed of pedestal and isolation spring. When the vertical vibrating conveyor (elevator) is working, according to dual vibration motors self-synchronization principle, vibrating motor can generate excitation force. Thus it can force the whole conveying tower to do space complex vibration of horizontal circular motion and upward vertical motion. The materials in the spiral groove will do uniform casting circular motion by the action of conveying groove and move up along the conveying groove. Thus it can complete conveying operations of materials upwords (or downwords).

Technical Parameters
ModelConveying value
(t/h)
Conveying groove diameter
(mm)
Conveying width
(mm)
Conveying height
(m)
Vibration frequency
(min)
Double-amplitude

(mm)
Electric power (kw)Weight
(kg)
SZC300~1.030077≤2.09606~72×0.75680
SZC500~2.0500140≤3.09606~82×0.751010
SZC550~3.0550152≤3.59606~82×1.51190
SZC600~3.0600163≤4.09606~72×1.513210
SZC800~4.0800224≤4.59606~82×2.21590
SZC850~4.0850224≤5.09606~92×2.21750
SZC900~3.5900185≤6.09606~92×3.02100

Note: Conveying value in the table is calculated by density 1.6ton/m³.

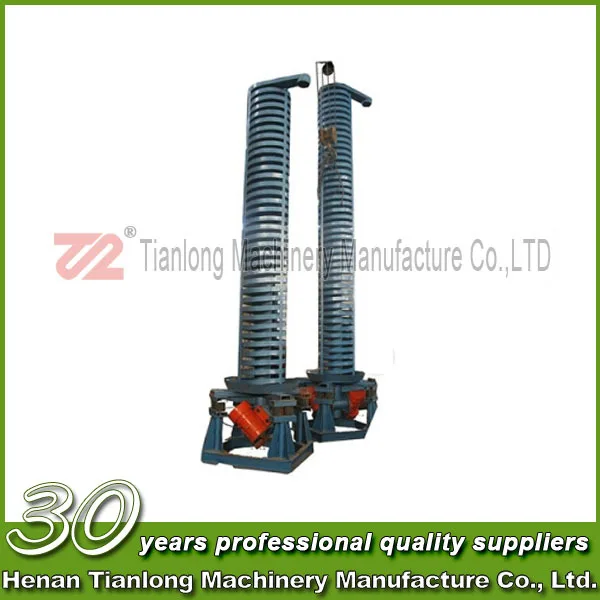

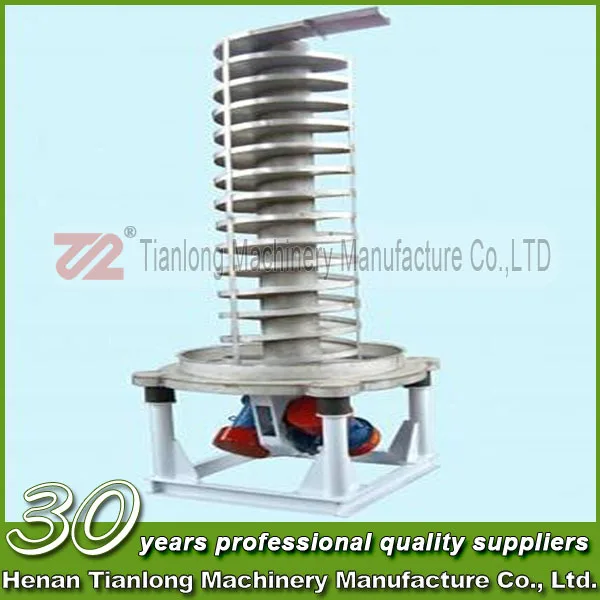

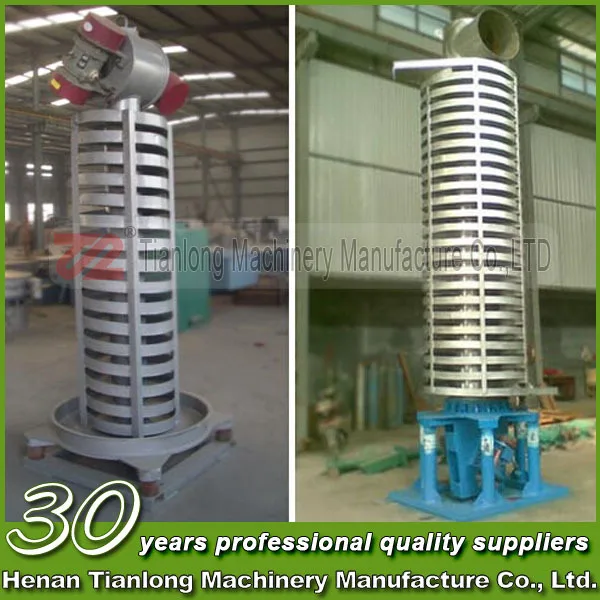

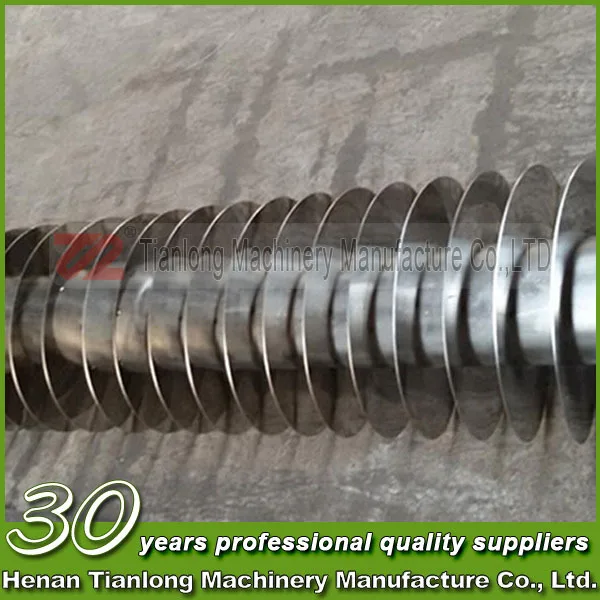

Product Pictures
